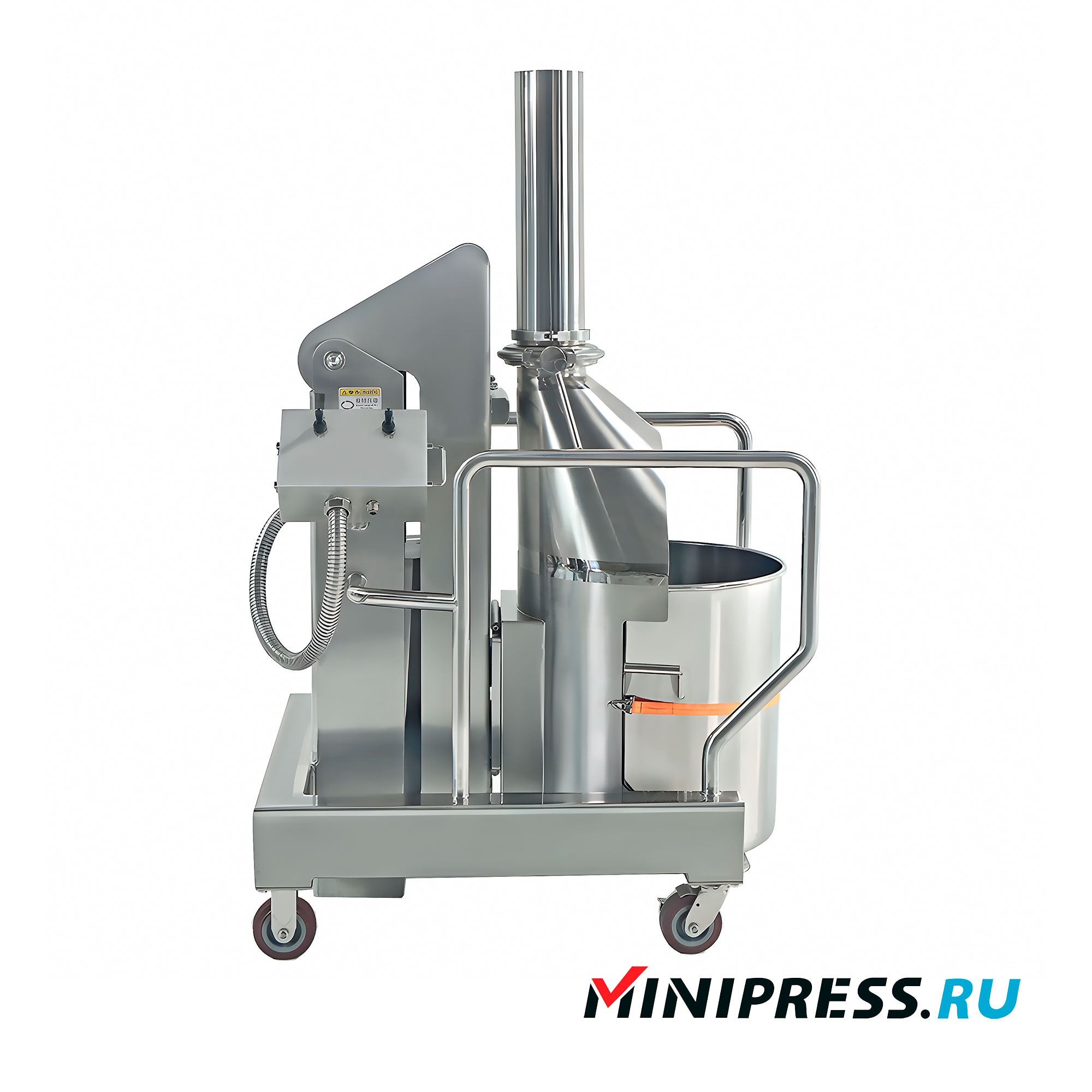

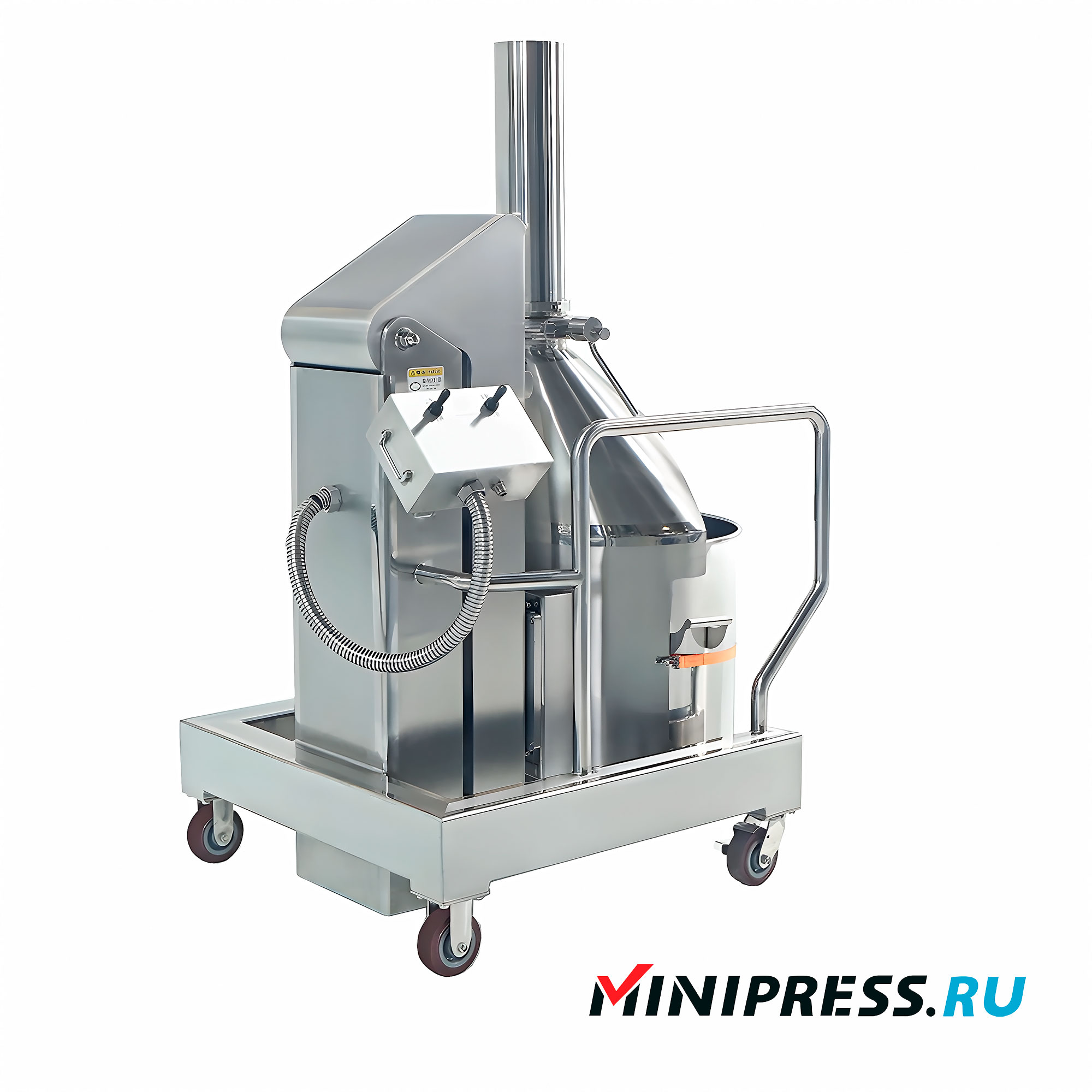

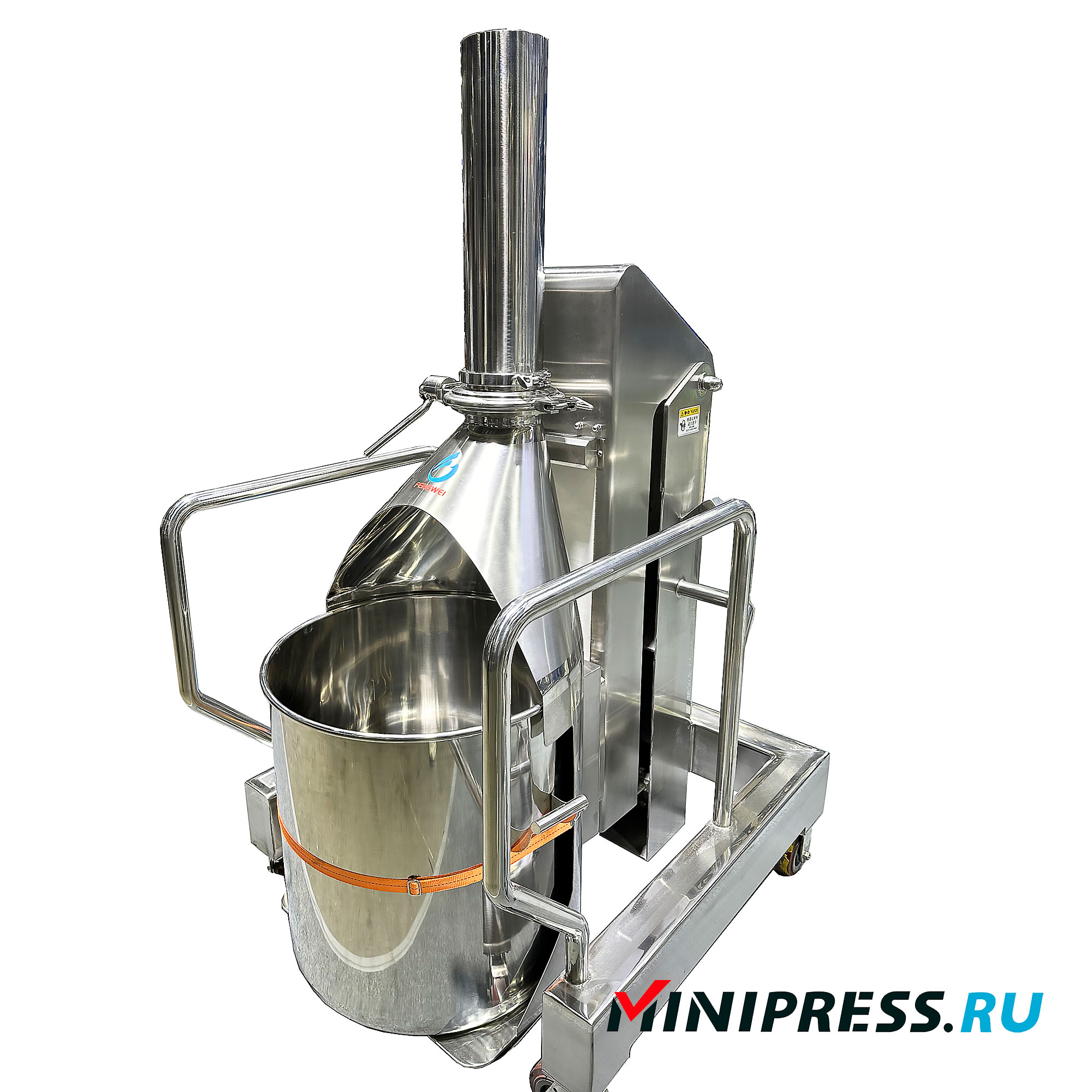

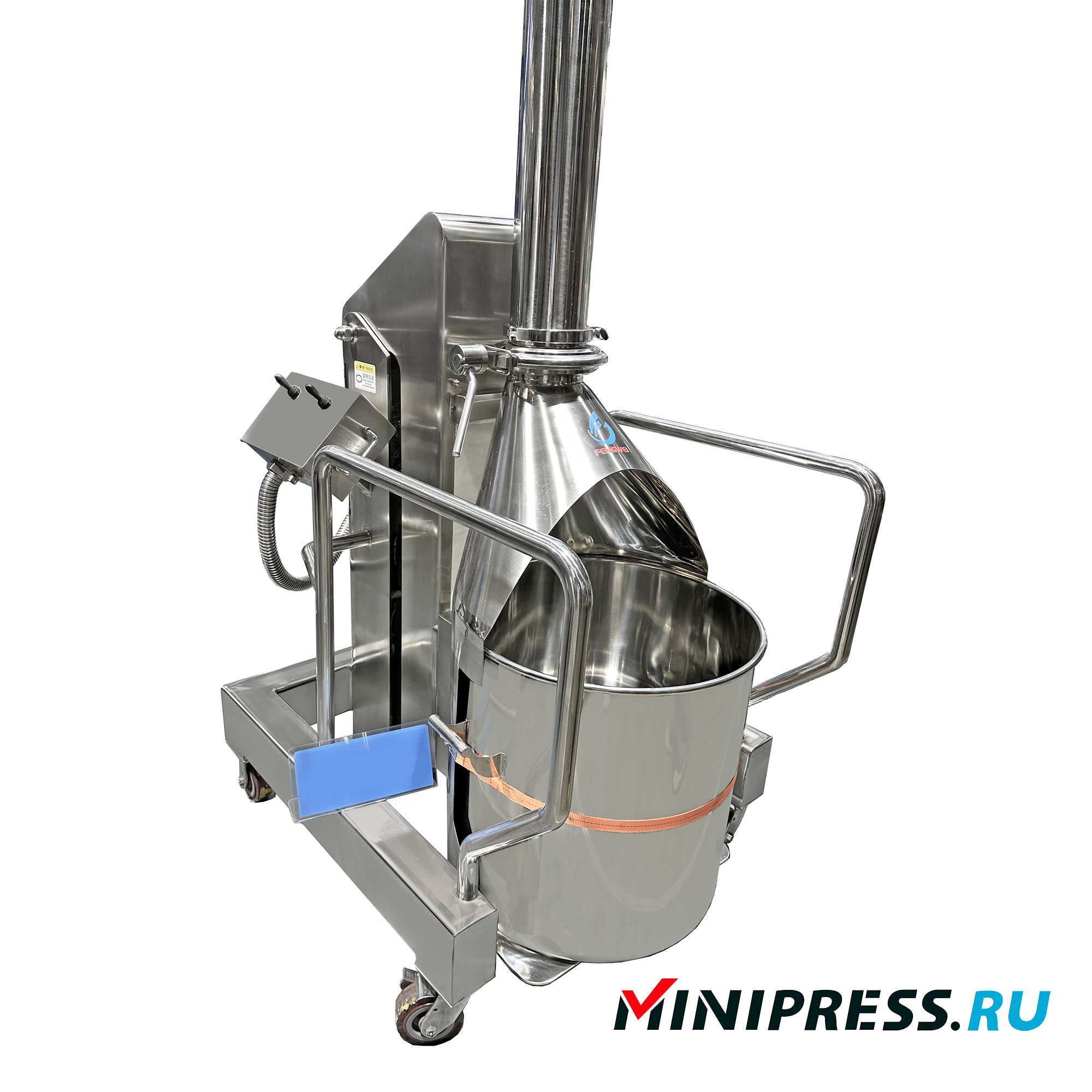

Automatic tipper for pharmaceutical containers with powder “FTB-15”
Feeding height: 1260-1400 mm
Feeding width: 500-760 mm
Compressed air pressure: 0.6-0.8 MPa
Air consumption: 0.2 m3/hour
Unloading angle: 30° horizontal, 30 degrees above horizontal
Load capacity: 150 kg
Container diameter: 500-600 mm
Container height: 450-600 mm
Noise level: ≤75 dB
Overall dimensions: 1160x980x1830 mm
Weight: 460 kg
Weight with packaging: 530 kg

Distinctive features of the models:
Automatic tipper for pharmaceutical containers with powder “FTA-15” – turning over for unloading.
Automatic tipper for pharmaceutical containers with powder “FTB-15” – preliminary lifting and turning over.
Automatic tipper for pharmaceutical containers with powder “FTС-15” – preliminary lifting, turning over and lowering the pouring point of the material.

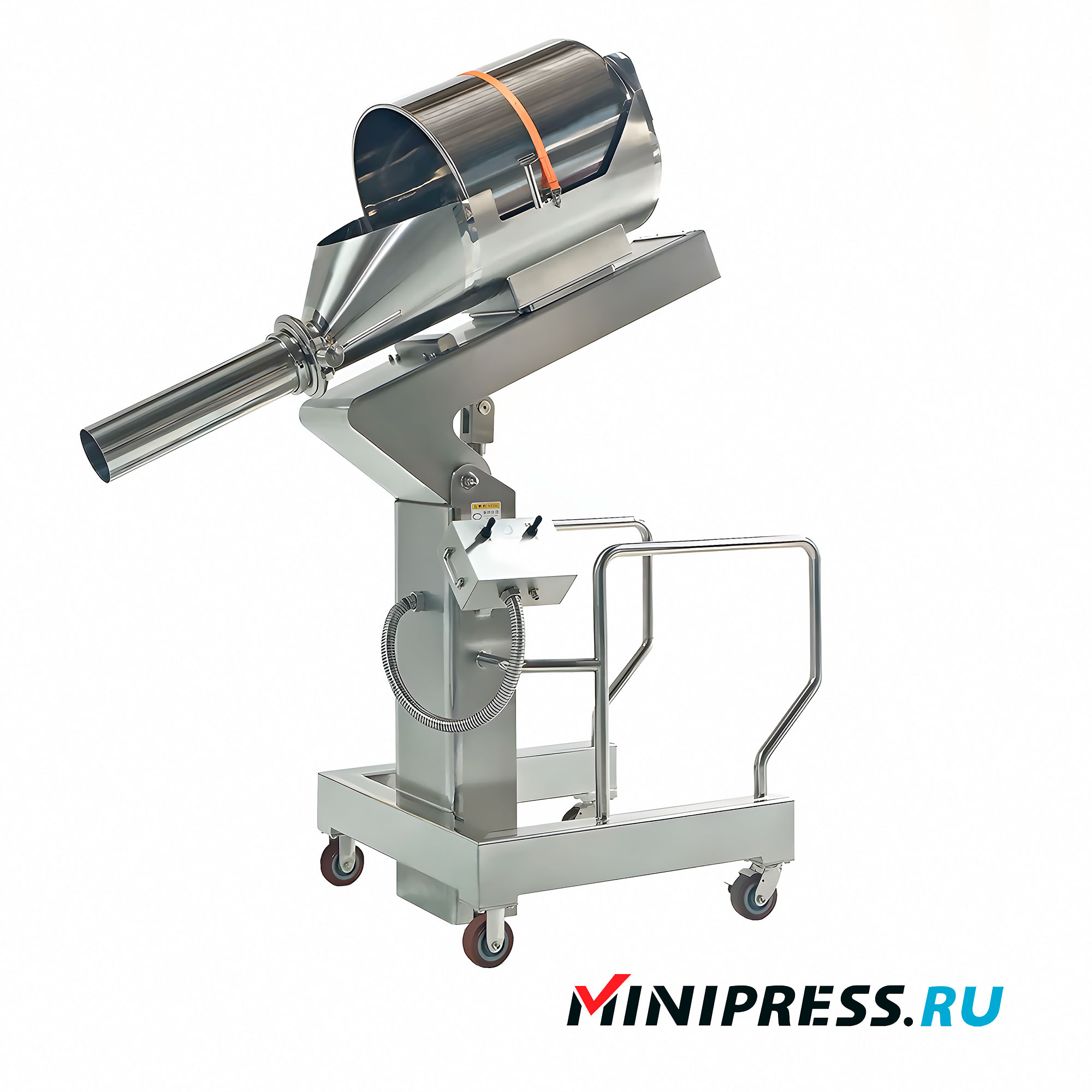

To operate the automatic equipment, it is necessary to connect an electric power supply and a compressed air compressor. The installed container with powder is lifted up in one operation, to the height of the pouring point, the second operation turns the container over with a pneumatic cylinder, at the desired angle, for unloading the material. The range includes 3 models, differing in the methods of lifting and turning over containers. There are models for stainless steel bins and plastic barrels. All containers are securely fixed on the platform with belts. Materials transported: coffee, dextrose, rice, acetylsalicylic acid caustic soda, milk powder, sugar, crushed aluminum oxide, detergent, bird feather, tea, aluminum powder, dry paint, fish meal, nuts, wheat flour, boric acid, nickel powder, gelatin powder, pea plastic granules, brewer’s malt, yeast, coffee beans, gunpowder, potato flour, fertilizer, cocoa powder, dry glue, all kinds of powder materials. All parts of the equipment are made of stainless steel according to GMP standards.
