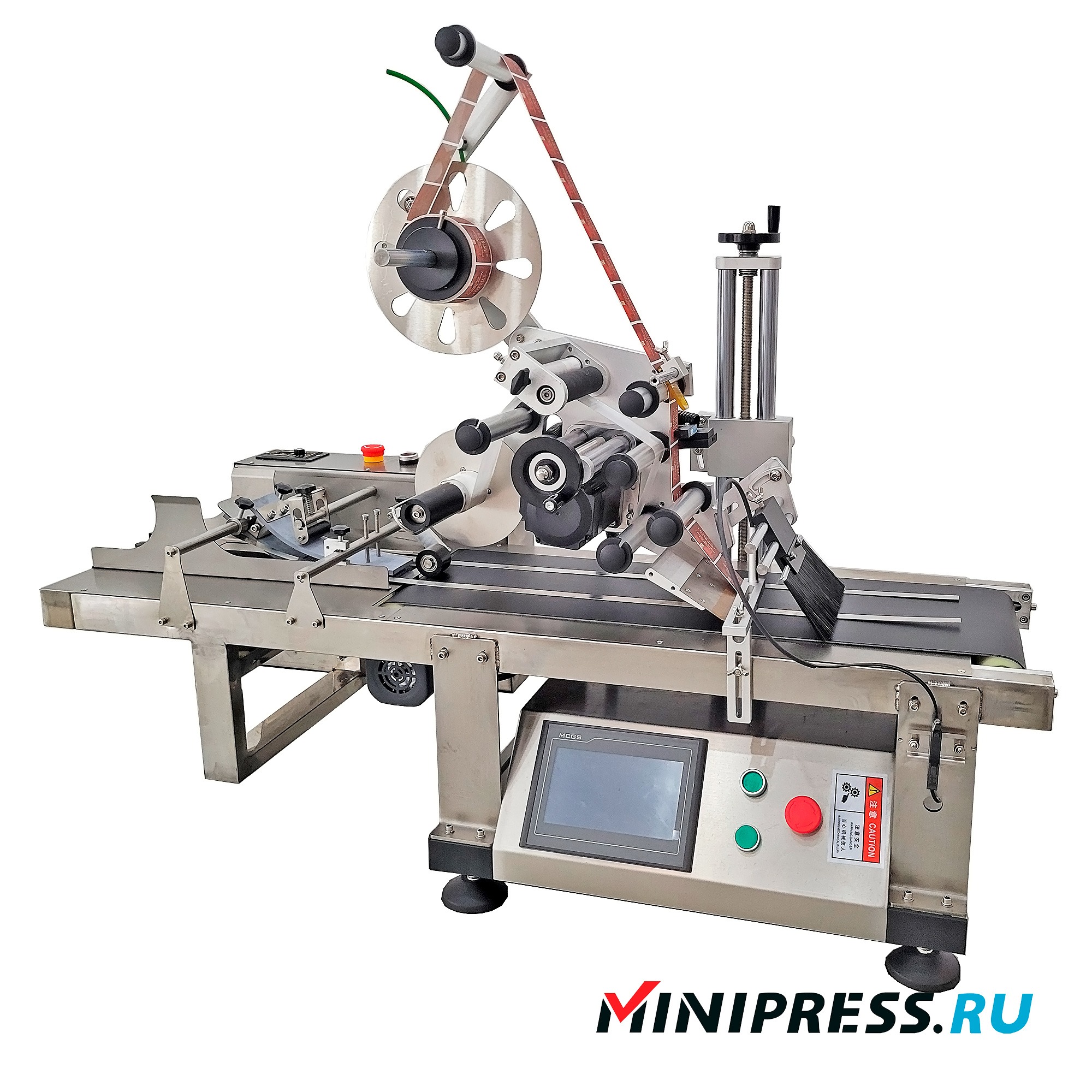

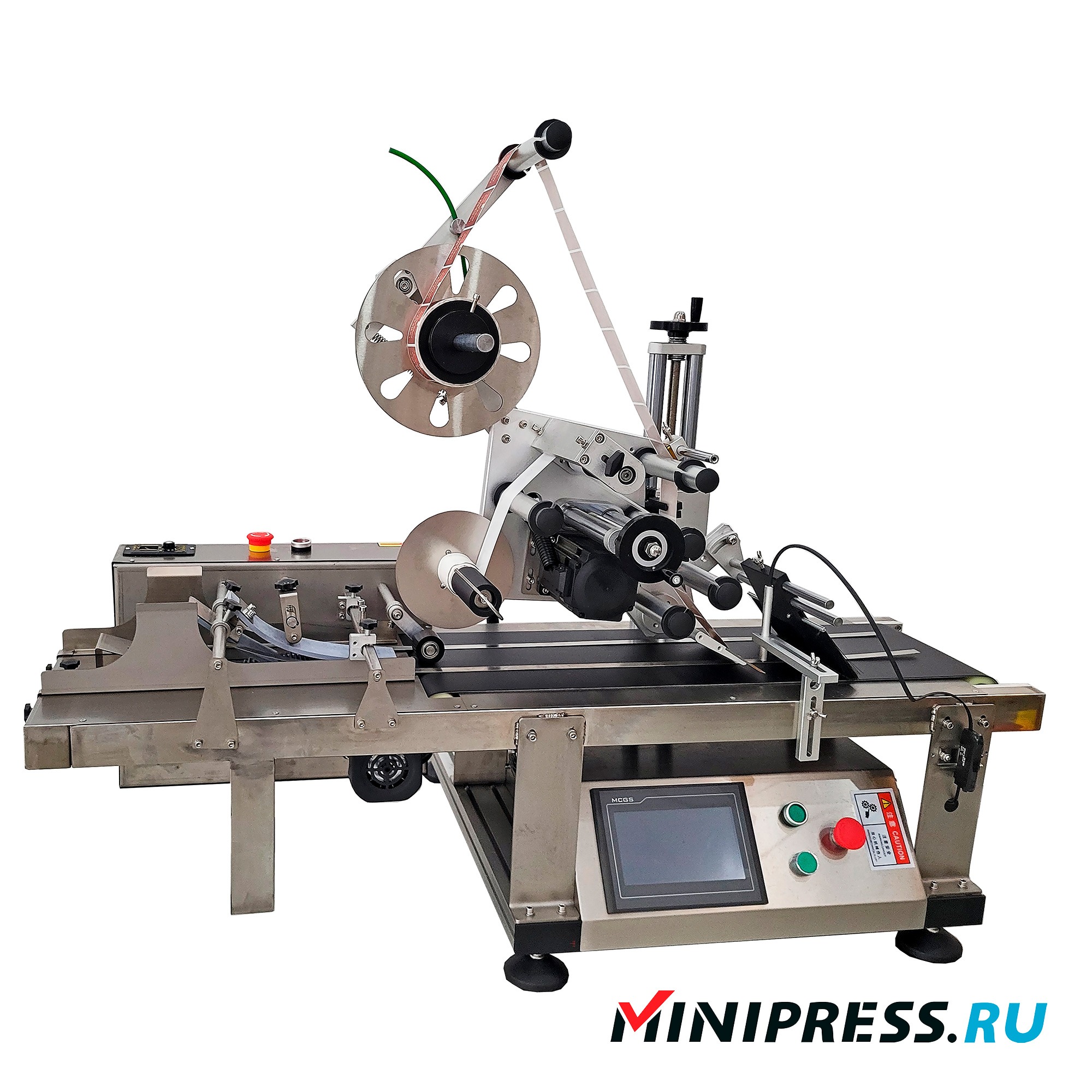

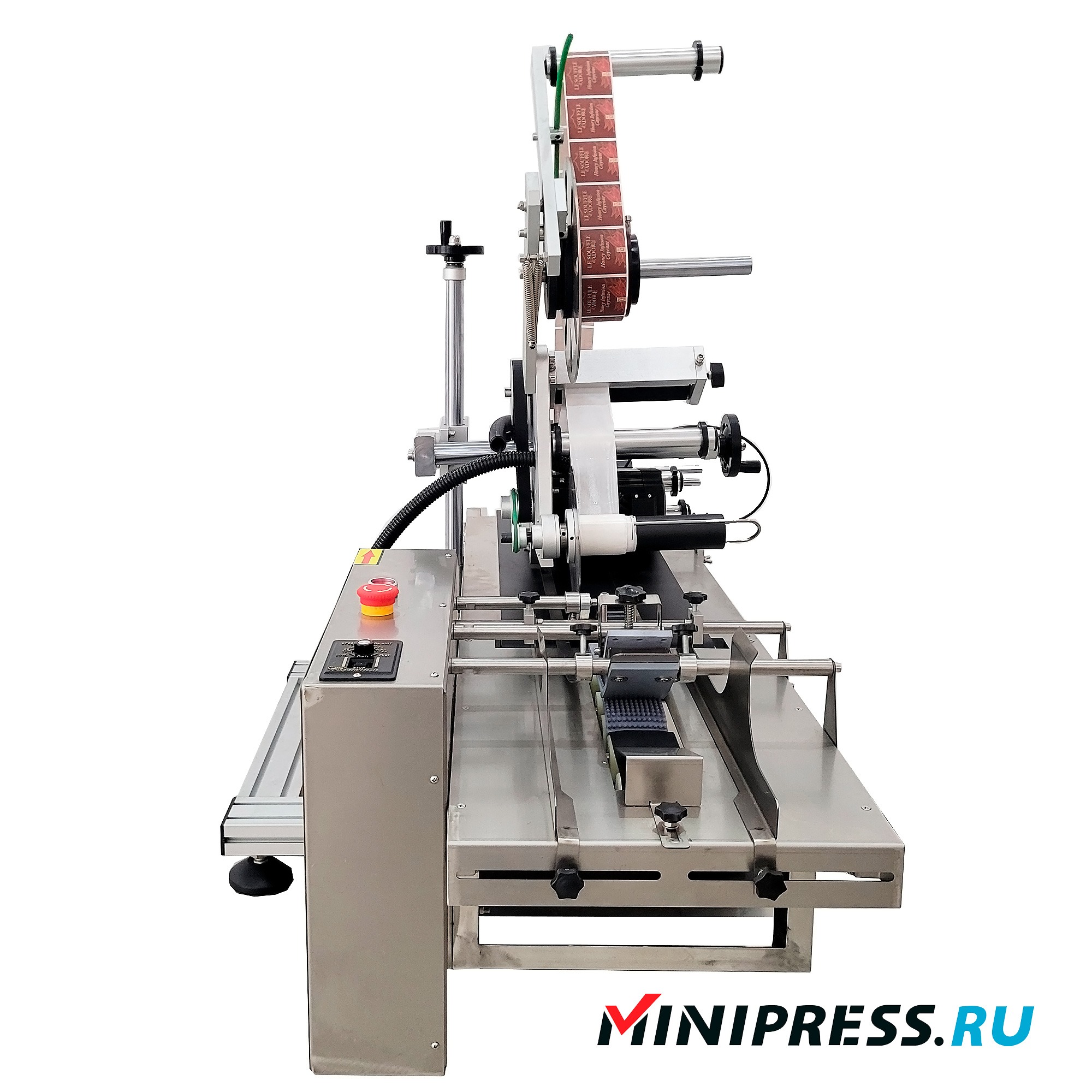

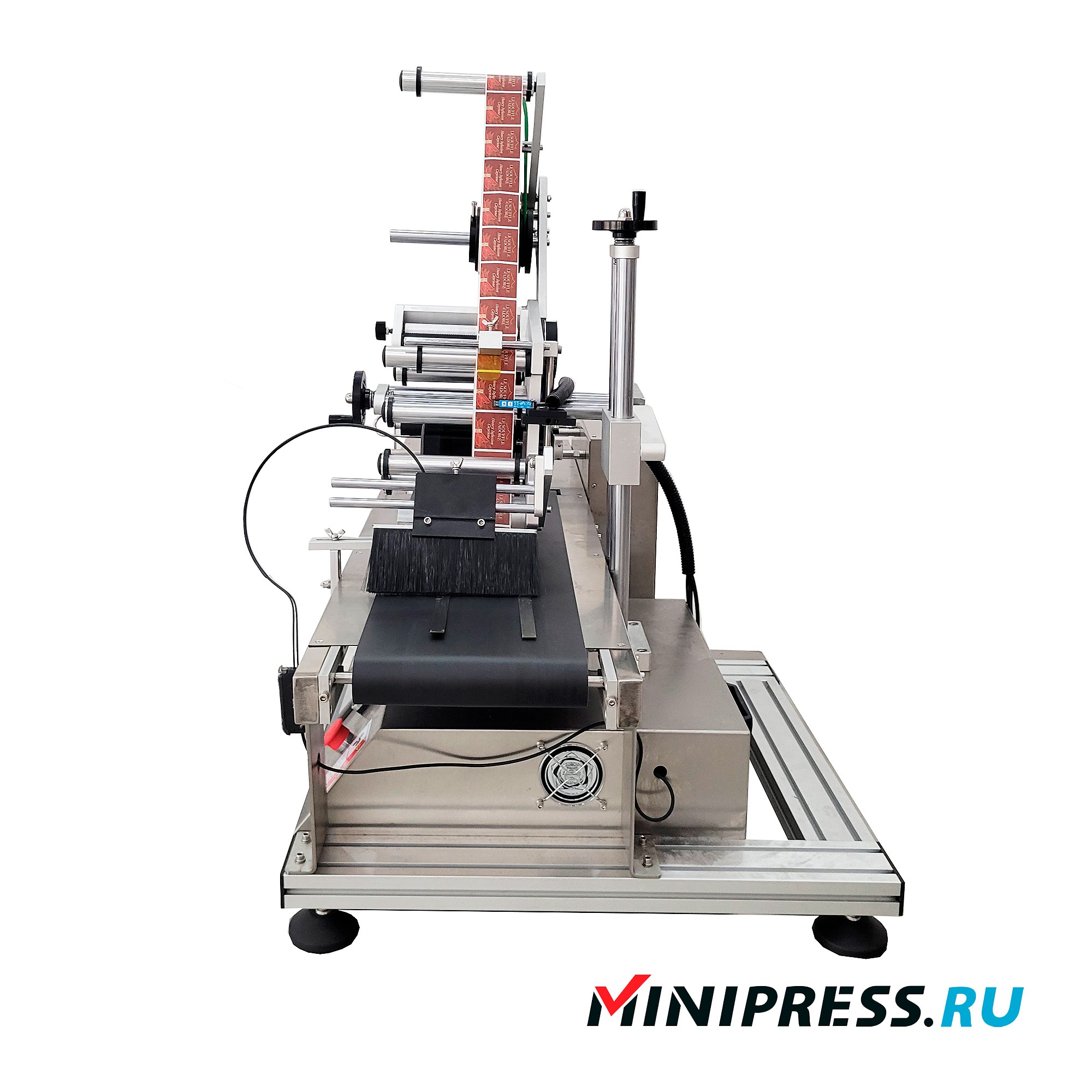

Desktop labeling machine with friction feeder “LY-20”
Type of equipment: Automatic sheet feeding and labeling machine (feeder labeling machine)
Scope of application: Paper, cardboard bundles, instructions/flyers, cards, spider bags, etc
. Feeding method (separation): Automatic friction sheet feeding
Labeling method: Applying a self-adhesive label
Label Location: Top / Side / Bottom
Labeling accuracy: ±1.0 mm
Capacity: 20-100 pcs/min
Product length: 30-300 mm
Product width: 30-200 mm
Product thickness: 0.2–10 mm
Label width: 20-150 mm
Label length: 20-350mm
Conveyor Width: Approx. 200-300mm
Label roll diameter: Max. approx. Ø300 mm
Diameter of the roll sleeve: Ø76 mm
The management system: LCD (PLC) + Touch Screen
Detection (sensor): Photoelectric sensor
Drive: Stepper motor
Conveyor belt: PU / PVC (polyurethane / polyvinyl chloride)
Construction material: SUS304 stainless steel
Power supply: 1F, 220 V, 50 Hz, 1.75 kW
Overall dimensions: 1350 × 800 × 850 mm
Weight: 130 kg
Weight with packaging: 150 kg

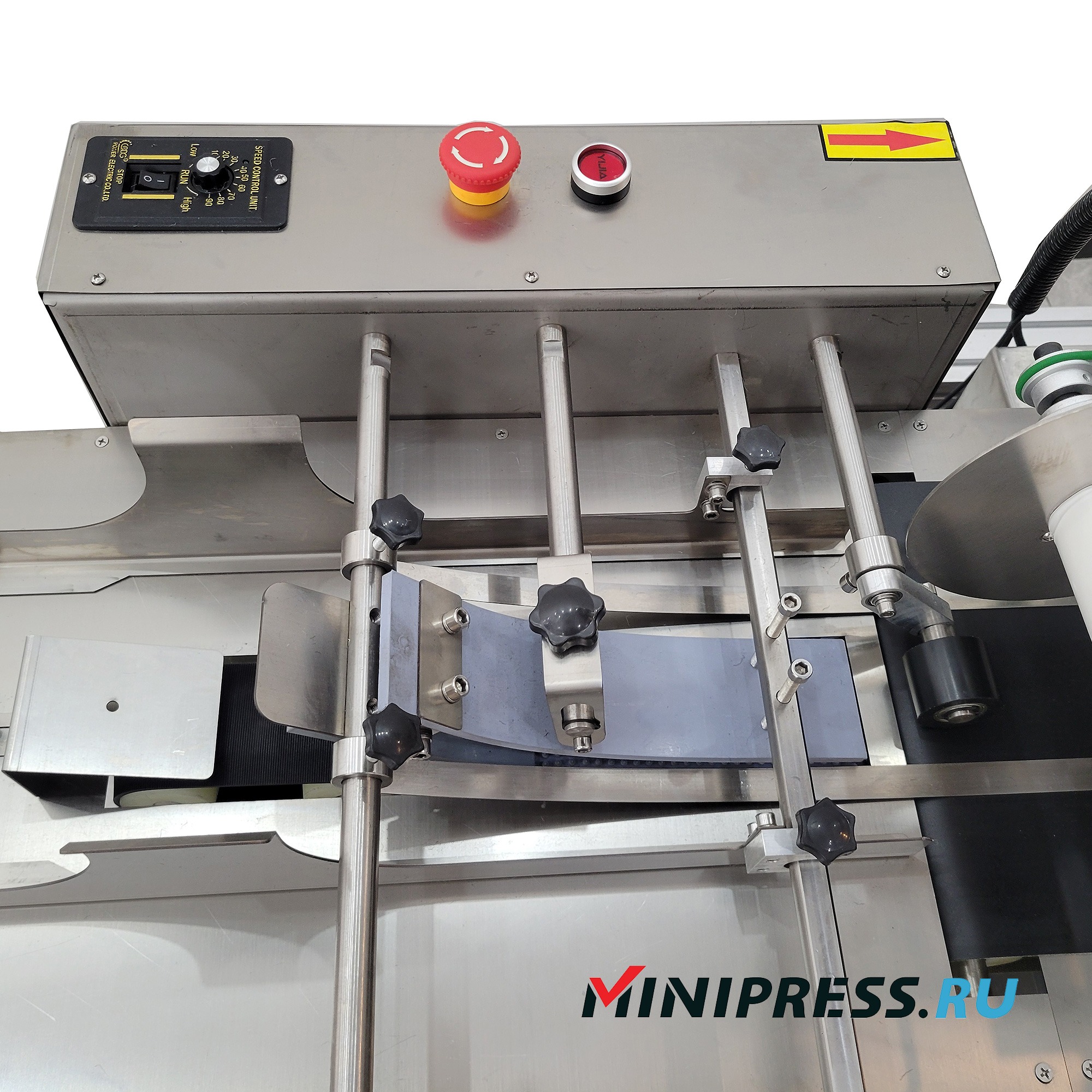

The products are loaded in a stack into the receiving hopper of the feed unit. The high-speed friction paginator separates the lower product piece by piece from the stack and directs it to the conveyor belt. When the product passes by the photoelectric sensor, the system captures its position and transmits a signal to the labeling head drive. The separation mechanism applies a self-adhesive label with high precision to a given area, after which the finished product is transported to the next technological stage. Technological cycle: Product loading → Automatic sheet feeding → Piece separation → Transportation → Object detection → Label feeding and separation → Label application → Unloading of finished products. Automatic sheet feeding unit (paginator): a friction separation mechanism with precise adjustment for different thicknesses and densities of the material (from thin paper to thick cardboard). Labeling unit: applicator with head position adjustment, tape tension control mechanism, as well as roll end and break sensors. Conveyor system: rigid SUS304 steel frame, stepless belt speed control and adjustable side rails. Detection and safety system: optical sensors for the presence of an object and label, monitoring of missed labels, automatic stop function and sound/light notification in case of failure. Control system: industrial controller (PLC) with color touch screen, counter of finished products, recipe memory, flexible parameter settings and emergency stop button. Pharmaceuticals: labeling of instructions, inserts, annotations, small packs, medical records and forms. Cosmetics industry: labeling of flat boxes, advertising inserts, samples and information cards. Food industry: labeling of flat bags (doy-pak, sachets), promo cards and flexible packaging. Electronics: marking of user manuals, warranty cards and case stickers. Printing and packaging: automatic pasting of envelopes, paper sheets, flat cardboard blanks and plastic cards.
