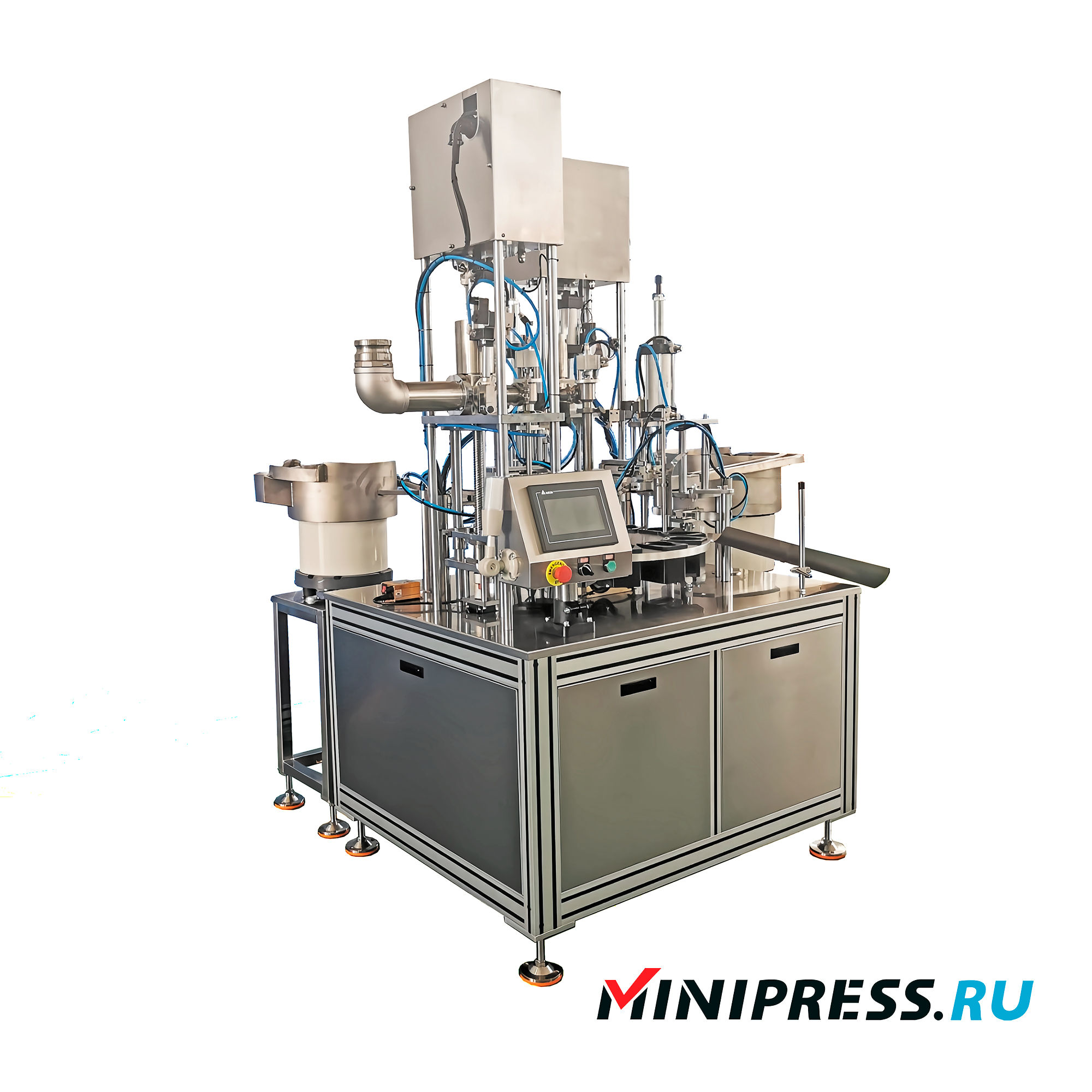

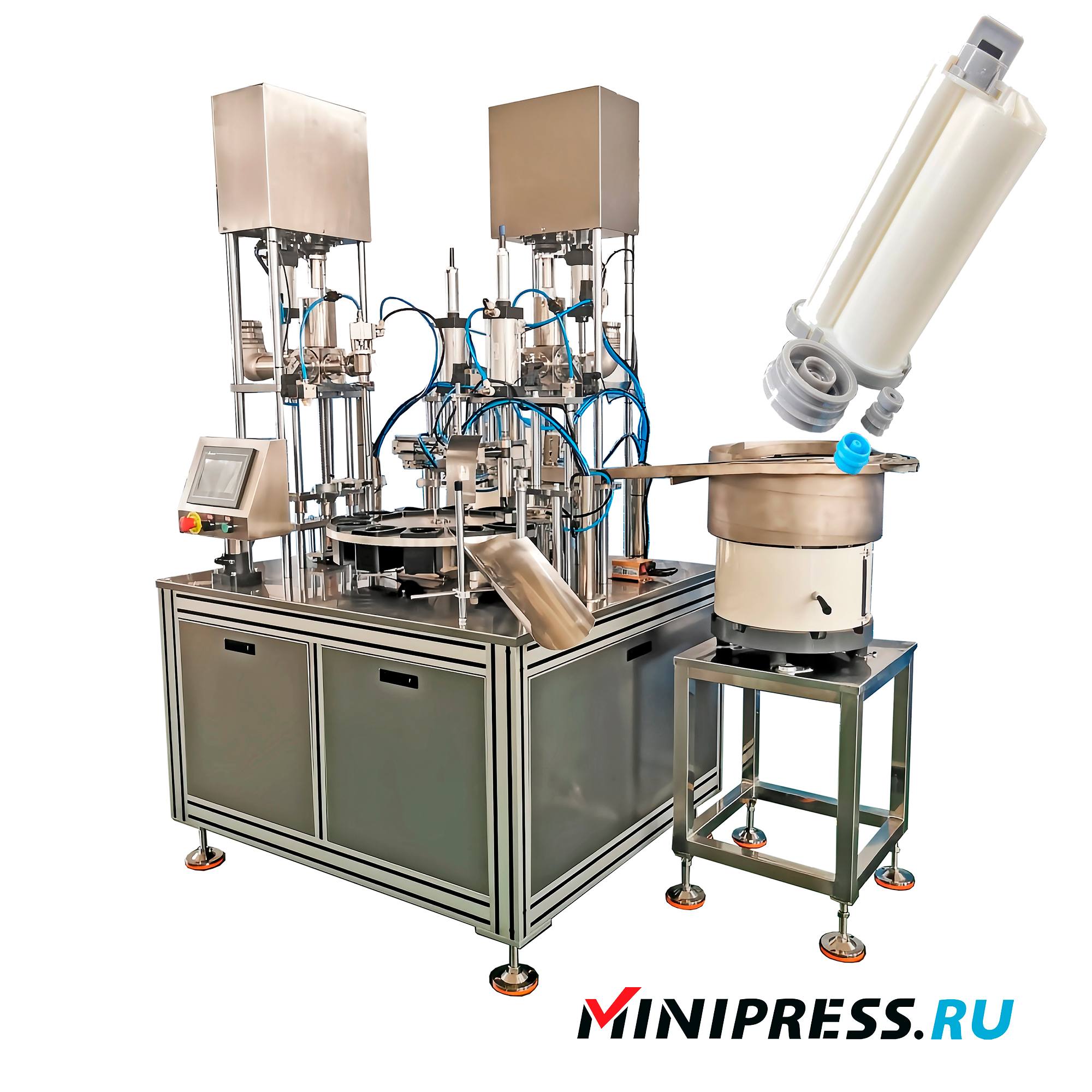

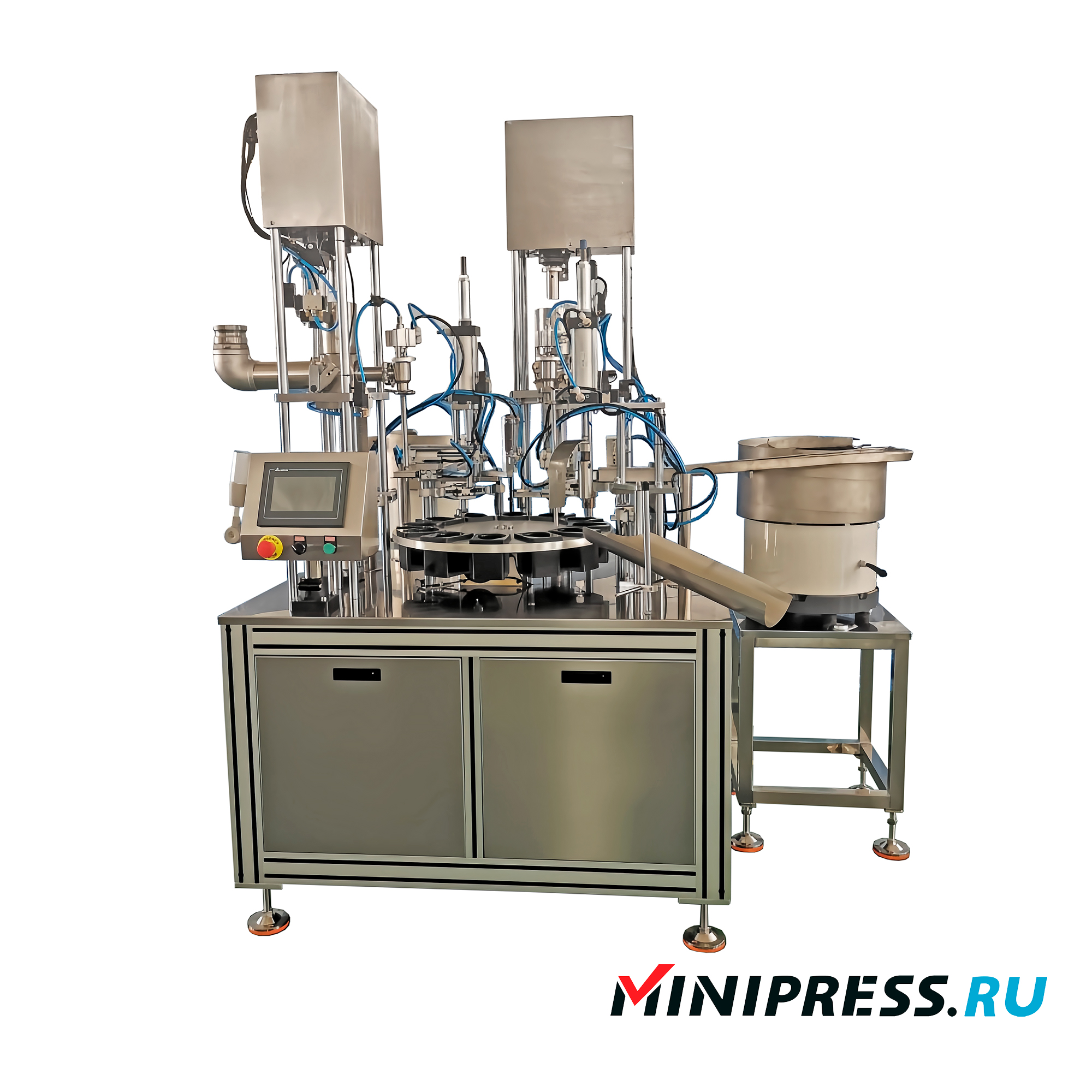

Semi-automatic filling line for two-component glue in plastic tubes “MN-02”
Productivity: 0-10 tubes per minute
Filling volume: 10-2000 ml, depending on the product
Operating principle: Hydraulic filling with servo drive
Material type: two-component glue
Number of filling heads: 2
Bottle diameter: 50 ~ 150 (mm)
Allowable bottle height: 50 ~ 250 (mm)
Filling accuracy: 1-2 (%)
Materials used: silicone glue, adhesive without stickers, glass glue, bubble glue, etc.
Number of work places: 8
Number of filling heads: 2
Type of packaging: Plastic tube
Material: stainless steel grade 304
Voltage: 380V
Power: 3.5 kW
Overall dimensions: 2100x1600x1800 mm
Dimensions with packaging: 2200x1700x2200 mm
Weight with packaging: 1800 kg

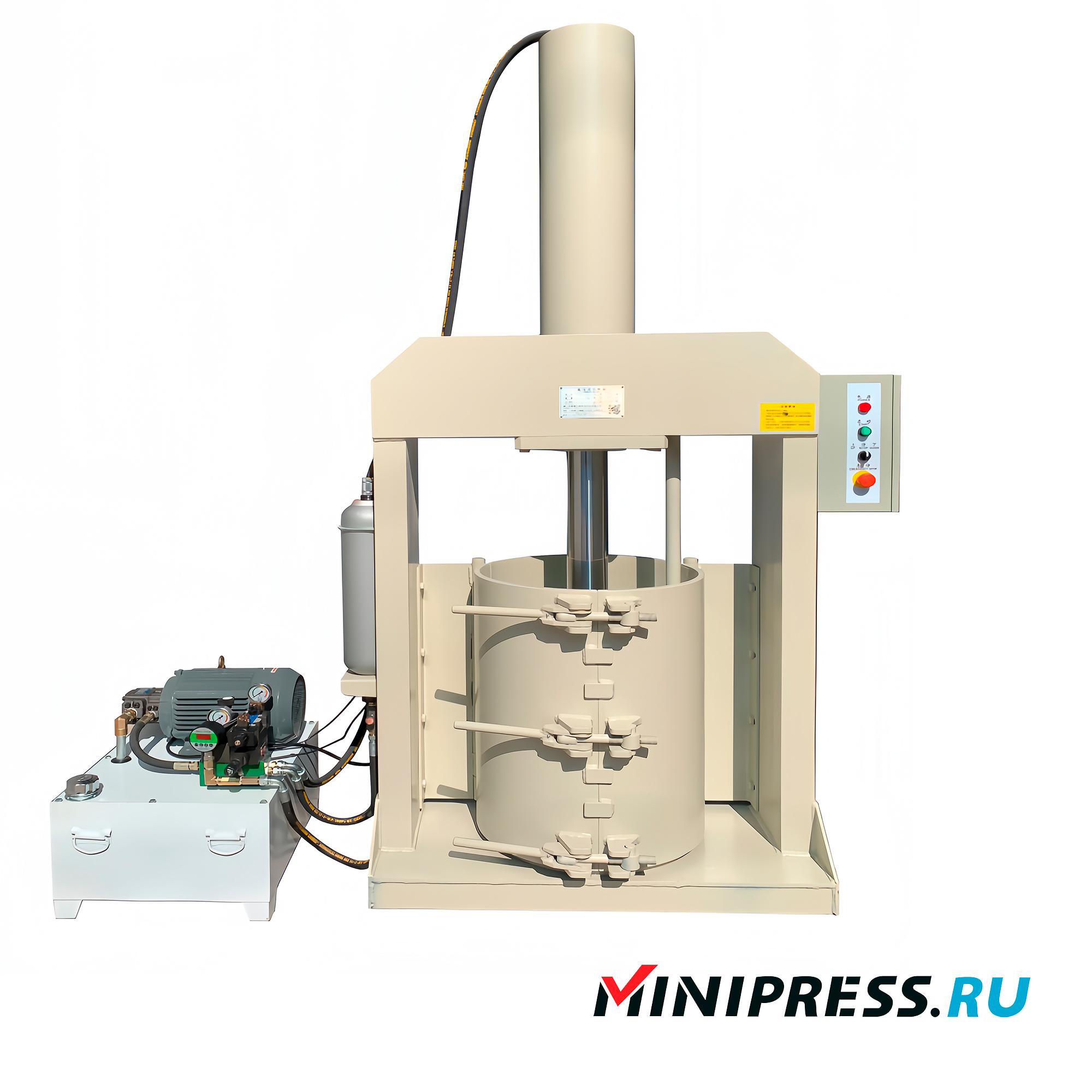

Hydraulic press
Compression force: 45 tons
Barrel for suitable materials with a volume of 200 liters
Barrel dimensions (diameter 570 mm * height 880 mm), straight standard barrel
Technical characteristics of the outlet DN65
Hydraulic station oil tank: 120 liters
Voltage: 380V
Hydraulic station size: 650x550x900 mm
Stand dimensions: 700x1500x2650 mm
Weight: 1000 kg
Weight with packaging: 1200 kg

TOTAL WEIGHT 3000 kg

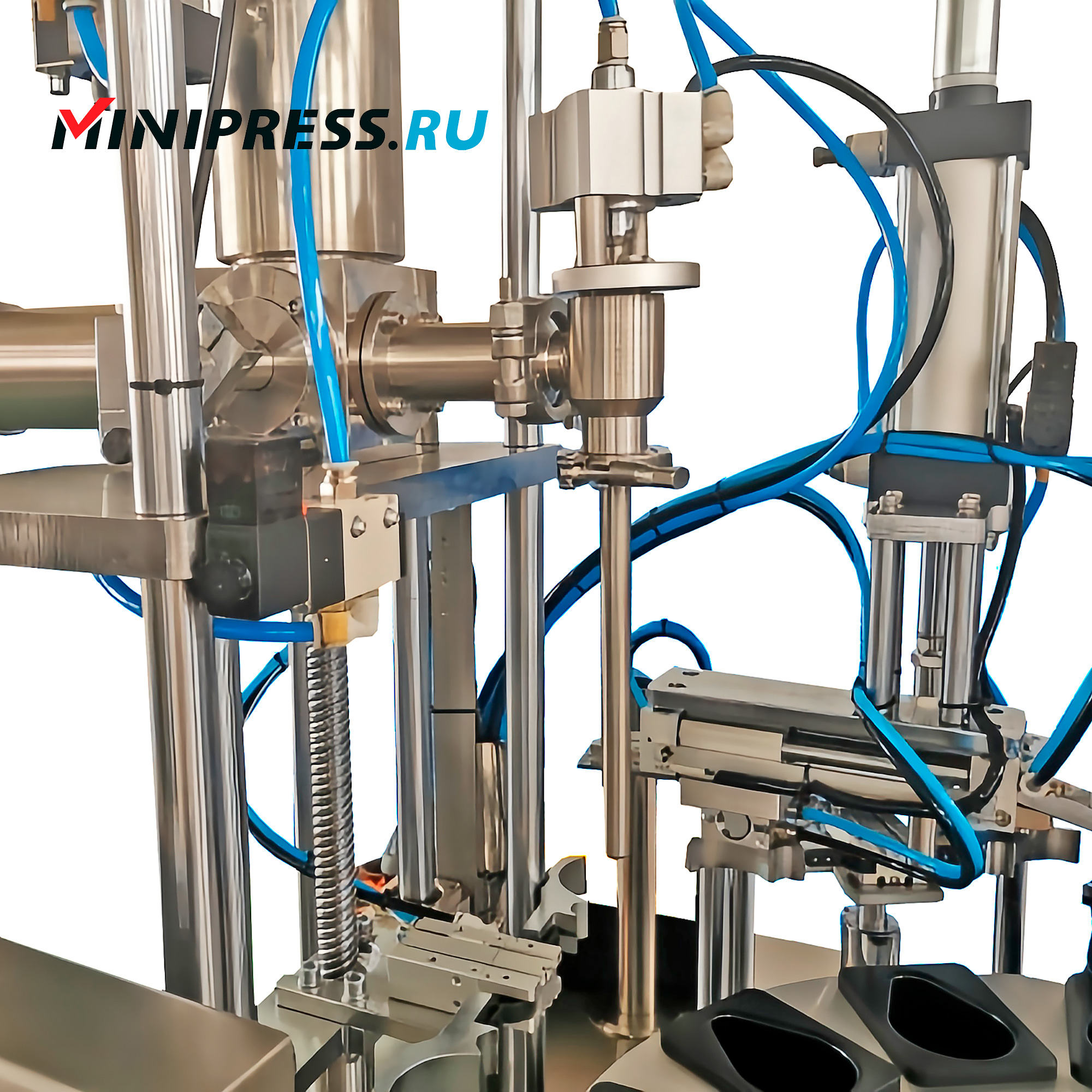

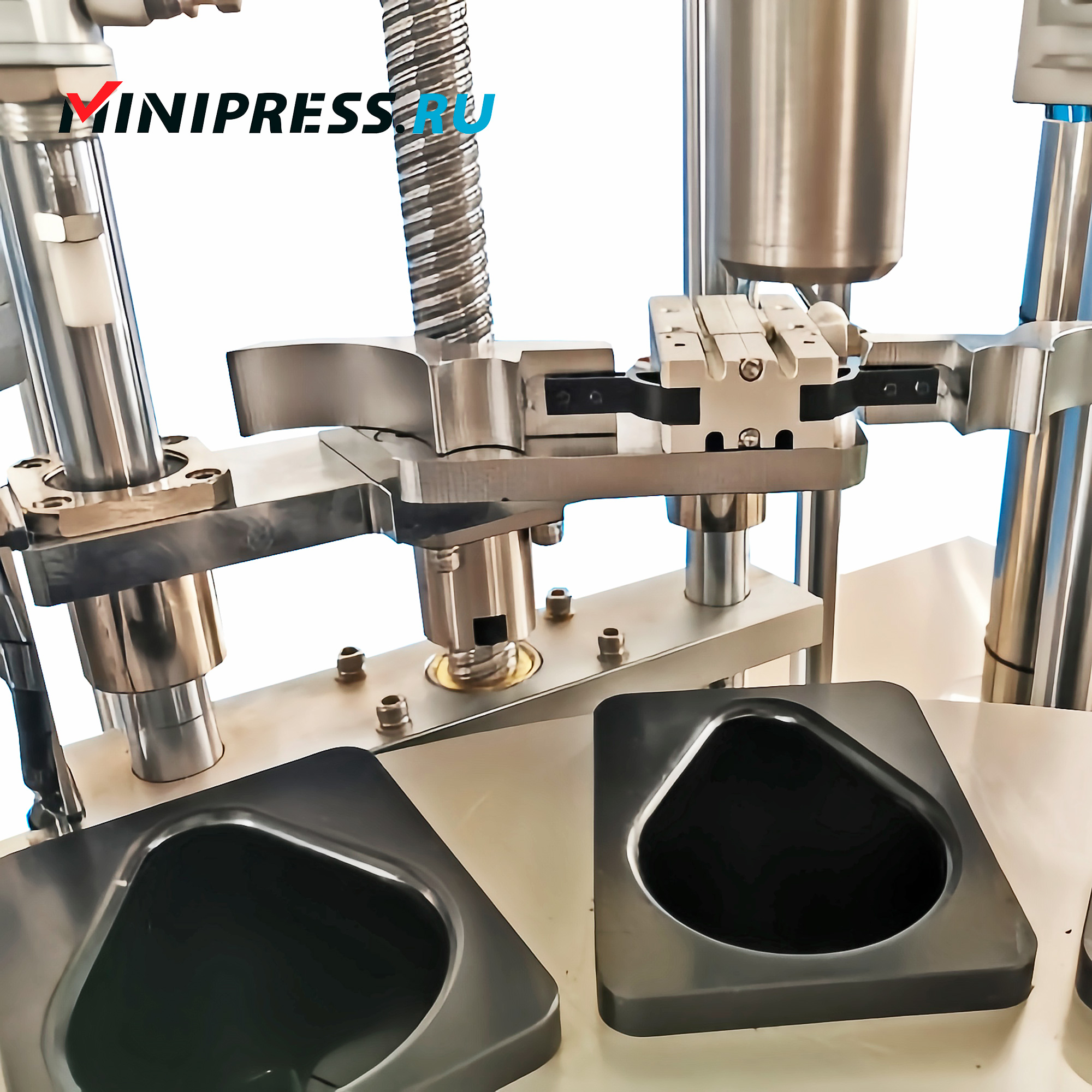

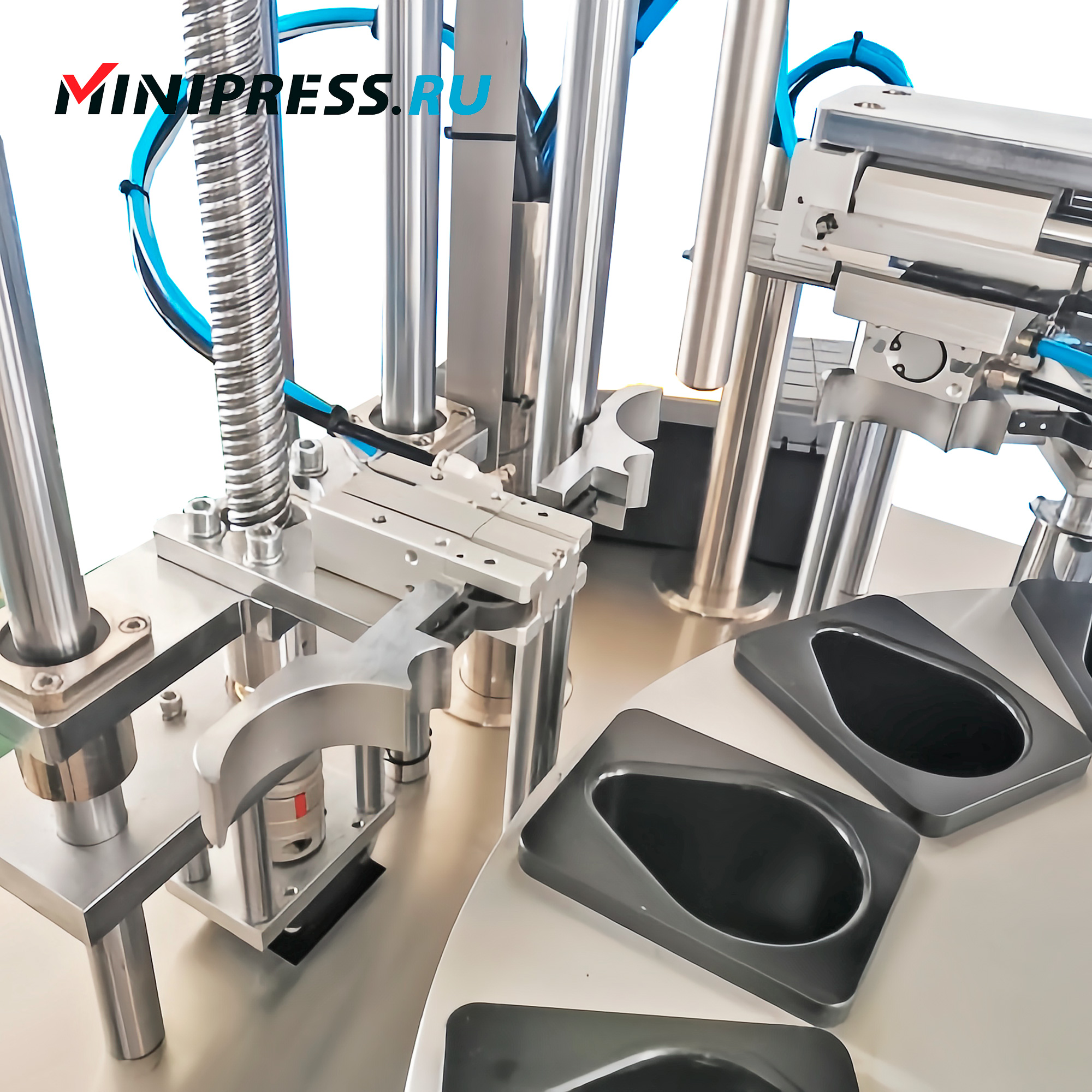

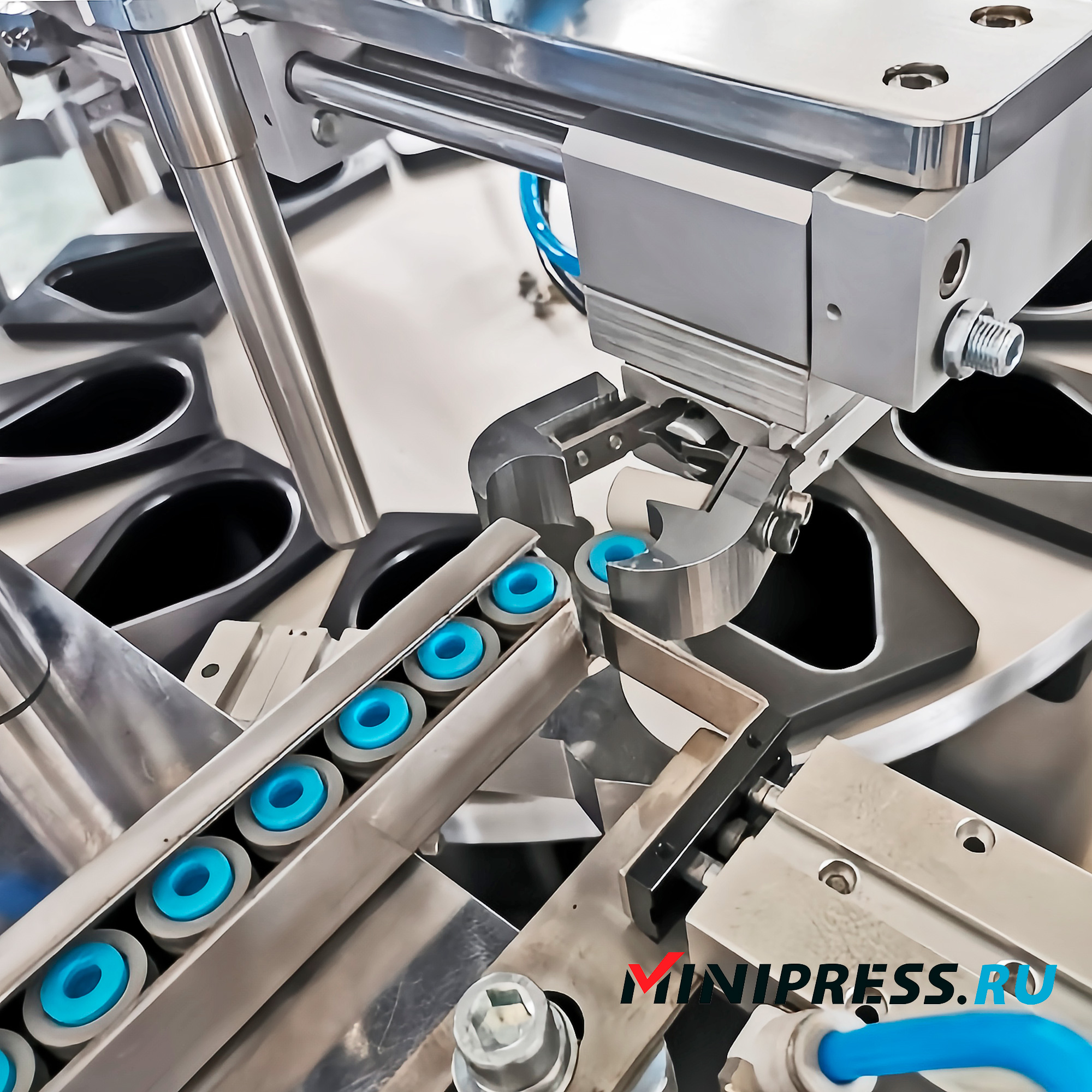

The machine is for sealing high viscosity products (two-component adhesive). The hydraulic pressure generated by the press is used to feed the material into the tube. The dispenser has high-precision quantitative filling with two servo drives for intermittent movement, it has a series of functions including feeding at atmospheric pressure, quantitative filling with servo drive, pneumatic wire flow breaker and automatic valve expansion. The filling equipment has pneumatic telescopic active rod, cone breaker and filler to prevent silicone from being pulled out, with accurate measurement and adjustable filling volume. The equipment runs smoothly and reliably, without noise and other pollution. All contact materials and some related parts are made of high-quality stainless steel. Quick-change devices are used to clean parts and filling heads, which makes disassembly and cleaning easier. The automatic line is suitable for the chemical industry, pharmaceutical industry, adhesive production, shoe cleaning products and other related industries. Single head high viscosity silicone filler pressing machine with hydraulic sealant is a specialized mechanical equipment which can be used by sealant manufacturers for pressing. The advanced glue press has greatly improved the appearance, performance, as well as the stability and reliability. Among them, the “external control” function has been added to the lifting control system, which reduces the load caused by frequent work. The modern glue press can not only pack silicone glue, electronic glue, acrylic glue, polyurethane glue and acrylic-based acrylic glue, but also develop and modify various adhesive pastes, lubricants, etc., so as to improve the performance of the hydraulic glue press and meet the user’s needs for the use of the glue press. The hydraulic material feeding method ensures the efficiency and stability for high-viscosity materials, and the maintenance is quick and easy.
