Automatic filling and capping machine for plastic bottles “GX-14”
Production capacity: 1600-2400 bottles per hour
Material not in contact with the product: stainless steel 304L
Material in contact with the product: stainless steel 316L.
Pump type in the basic configuration: piston (peristaltic on request)
Caps diameters: 13-50 mm
Cylindrical vial diameters: 10-50 mm
Filling volume: 1-100 ml
Dosing accuracy: ± 0.5%
Filling head: 1
Caping (or crimping) head: 1
Air consumption: 0.5 MPa, 50 liters per minute
Motor power: 0.6 kW, 220 V/1/50 Hz
Dimensions: 500 x 550 x 750 mm
Weight: 80 kg
Dimensions with packaging: 850 x 850 x 860 mm
Weight with packaging: 100 kg

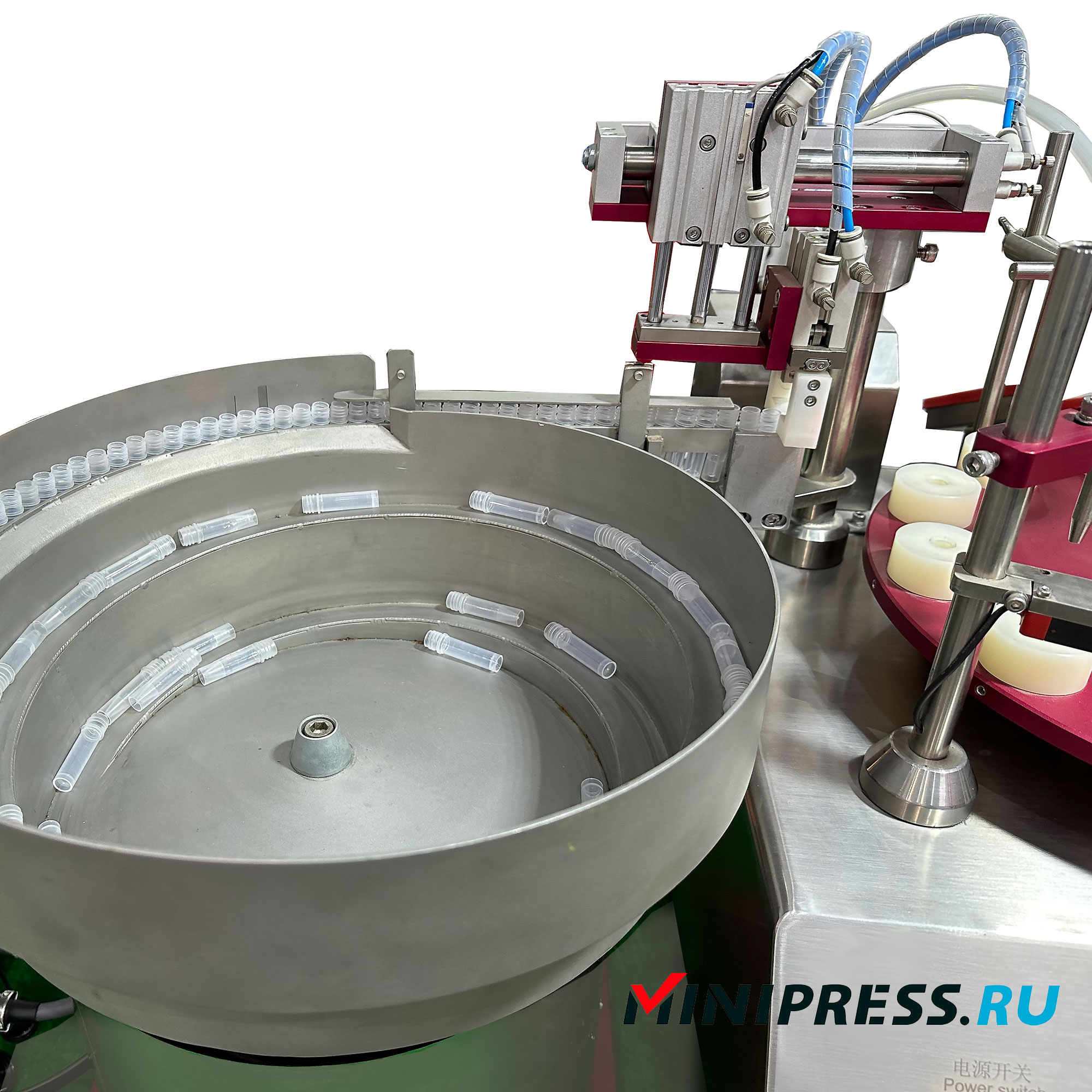

Vibrating hopper for feeding vials
Weight with packaging: 50 kg
Overall dimensions: 600 x 500 x 450 mm
Total weight with packaging: 150 kg

Cylindrical plastic bottles are automatically fed from the vibrating hopper into the tooling on the rotary table, which moves the bottles to the filling and capping unit. The filling machine fills one bottle at a time. Optical sensors monitor the presence of a bottle. If there is no bottle, there is no filling. From the accumulating vibrating hopper, the caps are fed to the capping unit, where they are used to seal the bottles, and the caps are screwed on mechanically, using a rotating head. Finished bottles are moved to the area of ​​their mechanical extraction from the tooling. The machine is used to fill and cap plastic bottles with a volume of 1-100 ml. For rectangular and square plastic bottles, another model is available with the function of manual bottle feeding by the operator. The filling and sealing operation is combined in this machine with its improved design and compact structure. Great importance is attached to the stability of the bottles. To make a decision on purchasing this equipment, we recommend sending photographs and dimensions of the bottles and caps to a representative of the equipment manufacturer.
