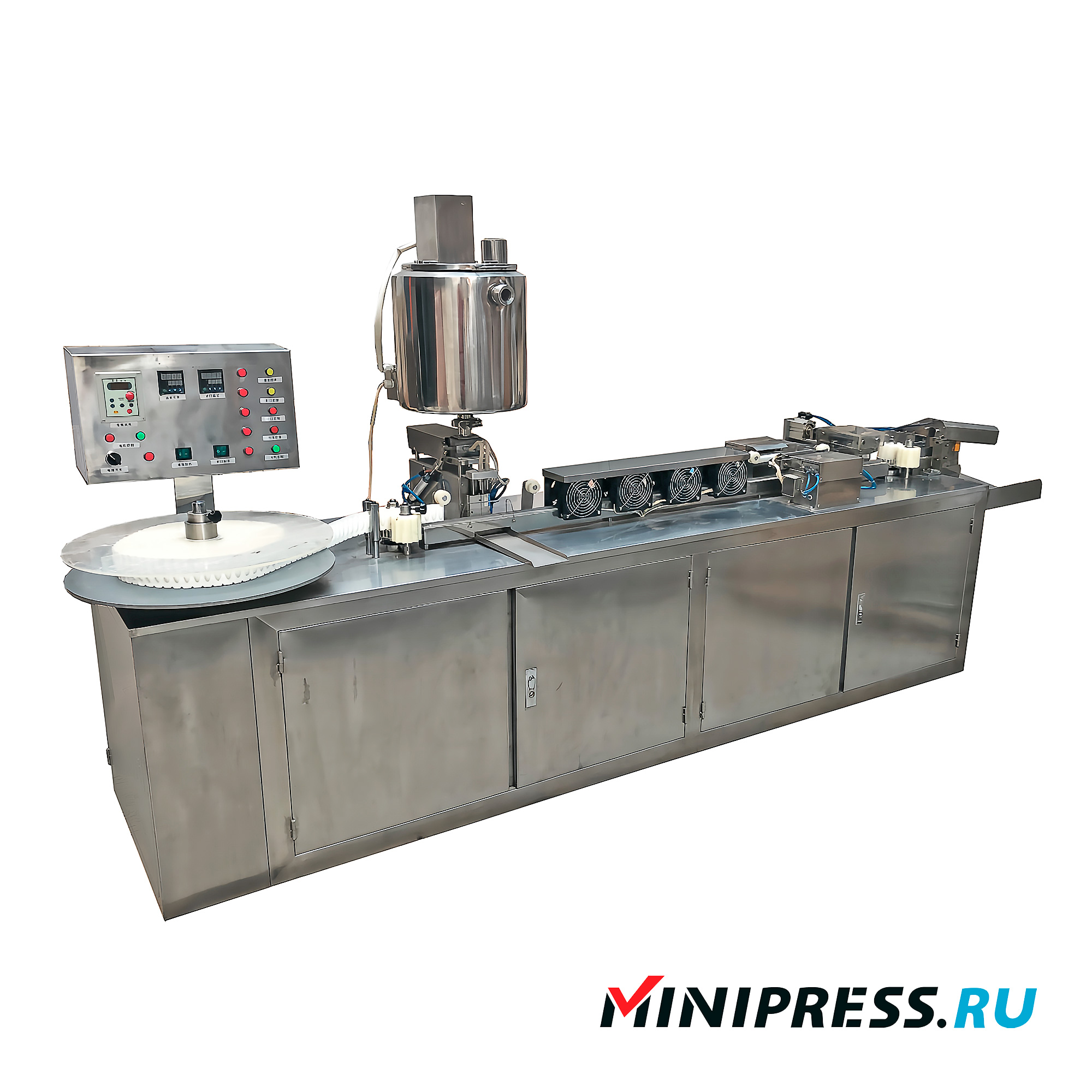

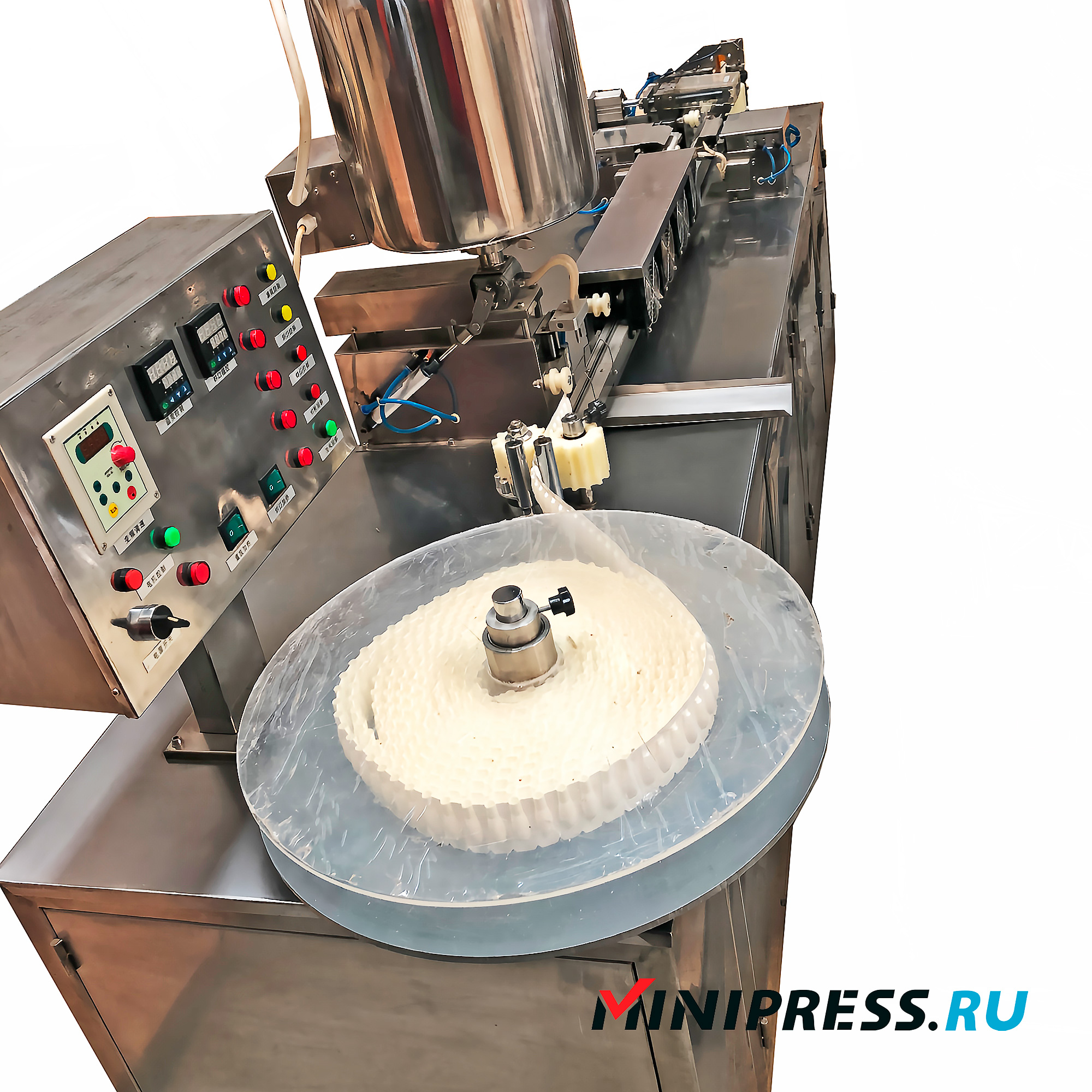

Semi-automatic suppository filling and sealing machine “SG-01”
Productivity: 2500-5000 cells per hour
Filling dosage: 0.5-6 grams
Filling error: ±1.5%
Applicable suppository shape:
Bullet shape, torpedo shape, duck mouth shape and other special shapes.
Suitable raw materials for dosing: Synthetic fatty acid glycerides,
glycerinated gelatin, polyethylene glycol, etc.
Heating cylinder volume: 30 liters, temperature range: 25 ℃-65 ℃
Air flow: 0.3 m3 / min at a pressure of 0.6 MPa
Total power: 2.8 kW, 220 V
Total size: 2100x750x1850 mm
Overall dimensions with packaging: 2400x800x1300 mm
Weight: 500 kg
With packaging: 600 kg

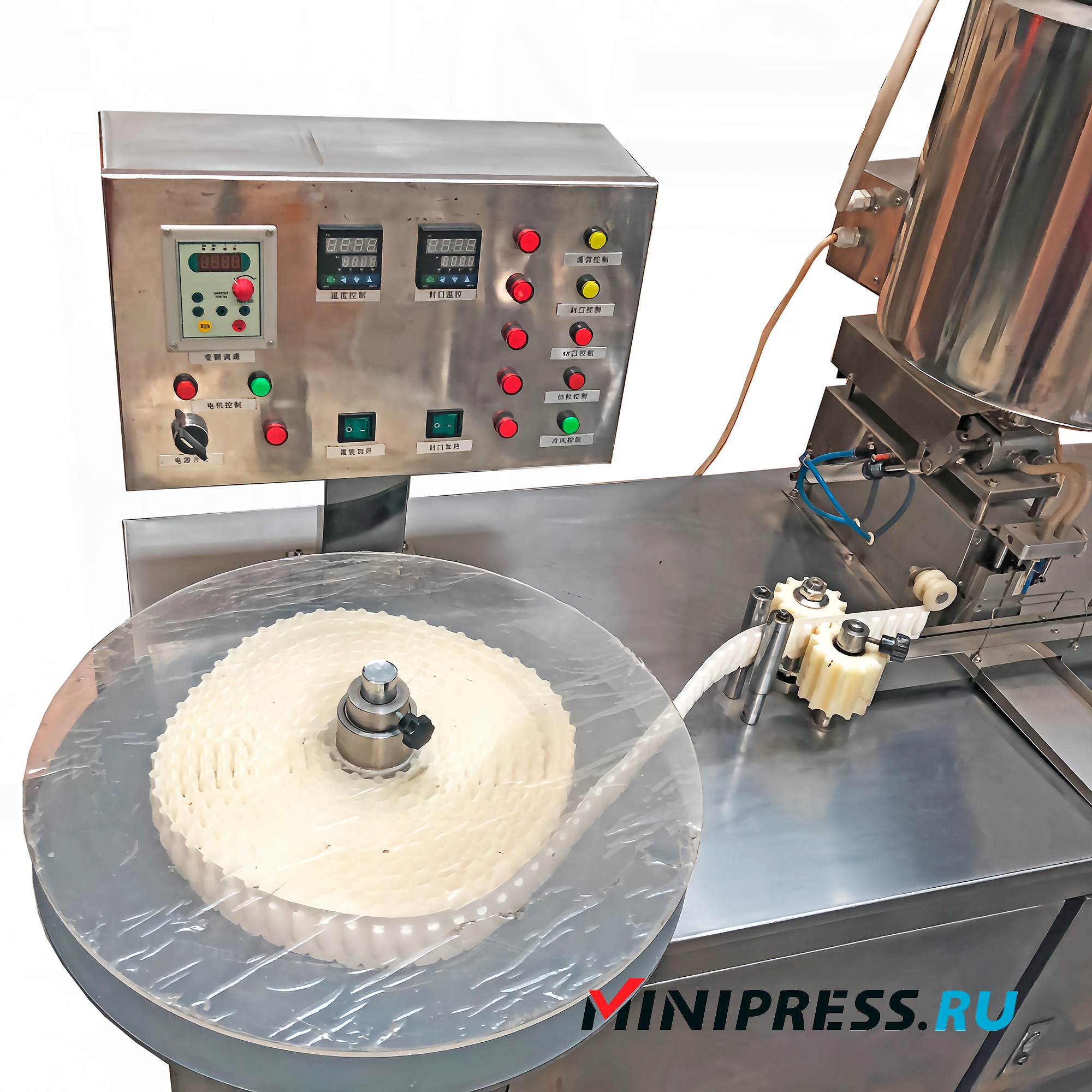

All processes are controlled by electronics. Speed ​​adjustment by stepless frequency conversion. Automatic filling with mass, edge sealing, stamping of batch number and expiration date, contour cutting, division into individual suppositories or groups of several pieces. Human-computer interface makes control simple and clear. The filling head does not leak, does not form foam and is protected from overflow. All components are made of high-quality steel and comply with GMP standards. Most pneumatic components are located inside the fittings. Automatic and mechanical filling, accurate calculation by programmable peristaltic pumps. The machine is electrically powered, controlled by an LCD display, fully automatic production of suppository products from PVC / PE film as a packaging material.

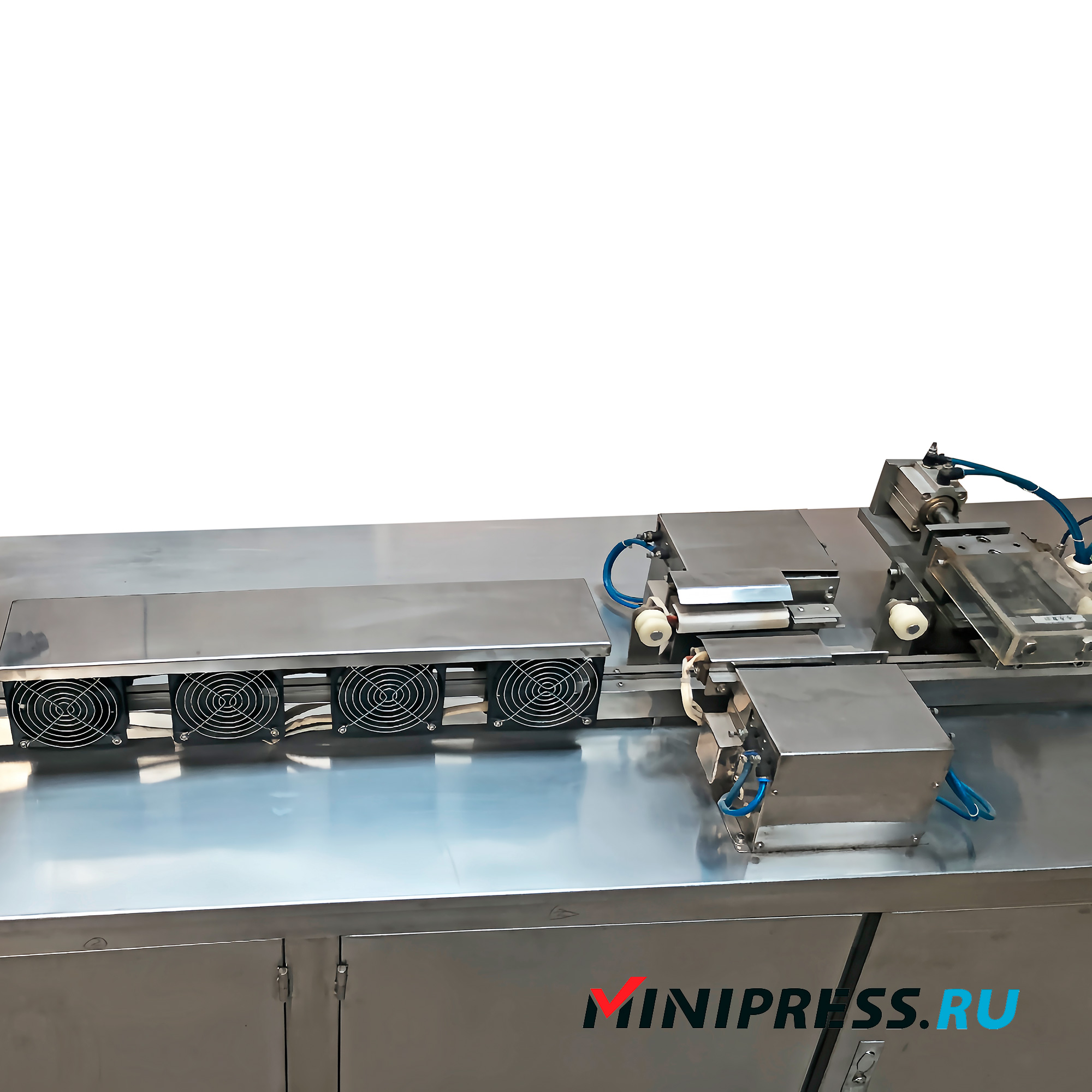

The thermal energy of molding is generated and maintained by a temperature element, and the cell molding pressure is converted from compressed air into mechanical energy by a multi-group cylinder.
